Self Loading Concrete Mixer

Self Loading Concrete Mixer


Production Capacity:

Multiple Functions
Accurately Mixed
Mixed Evenly
High Efficiency

SINOROADER specializes in concrete batching plant, concrete batch plant, concrete mixer, planetary concrete mixer.

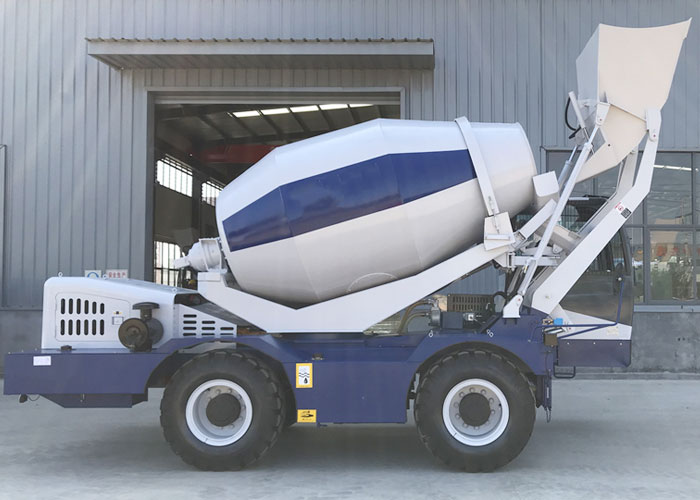

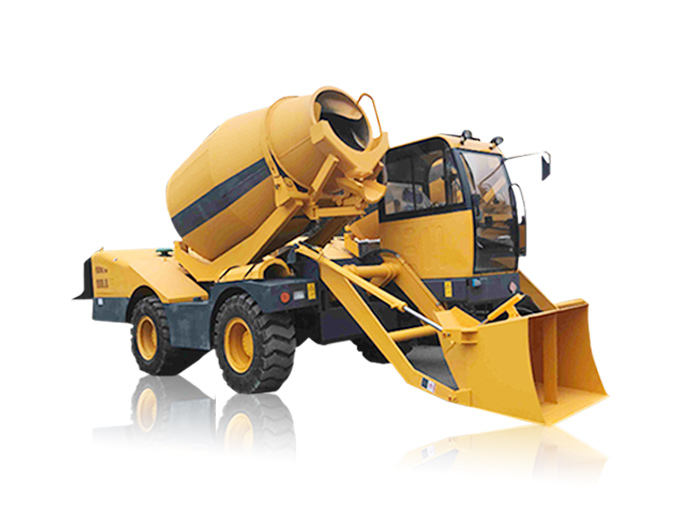

Self loading concrete mixers can automatically produce and transport concrete on-site for its self-loading design, it is really efficient! During project, it loads materials by self, don’t need any other auxiliary equipment, and it has characteristics of small volume, four wheels-driving and steering. What’s more, it can discharge concrete at 270 degrees, which is much more convenient in all kinds of concrete production construction site, particularly small and narrow construction sites, very cost-saving for the majority of users. Self loading concrete truck mixer mainly mixes plastic concrete and semi-plastic concrete.
Advantages Of Self Loading Concrete Mixer With pump
1. Self loading concrete mixture for sale can rotate 270 degrees;
2. Self load, meter, mix and discharge;
3. Compact structure and easy movement—four wheels steering;
4. High working efficiency and less energy consumption;
5. High stirring quality and short stirring time.
6. The main hydraulic components are imported!
7. At least 5 workloads are saved per day!
8. Save electricity 100 degrees everyday without a blender!

Working Process Of Self Loading Concrete Mixers

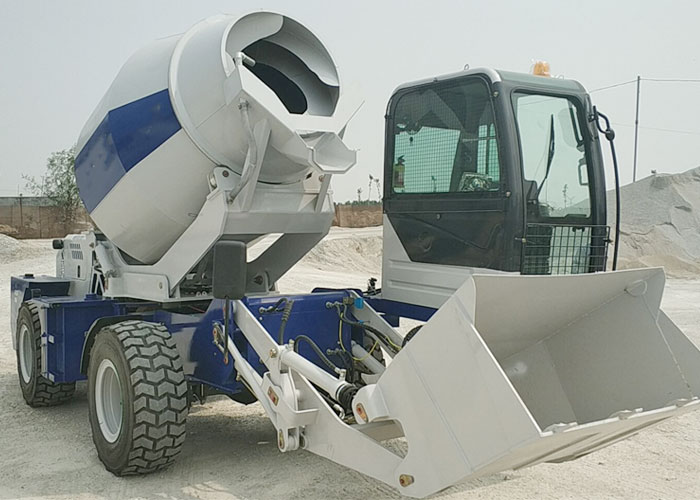

The operator drives the self loading concrete mixers to the materials stacking place and puts all the raw materials needed by production into the mixing drum with the bucket, and the mixing drum begins to mixing all the materials, after finished concrete mixing, the operator will send the concrete mixture to the designated construction site, during the transportation, the mixing drum will keep mixing the concrete in case the concrete mixture will freeze.

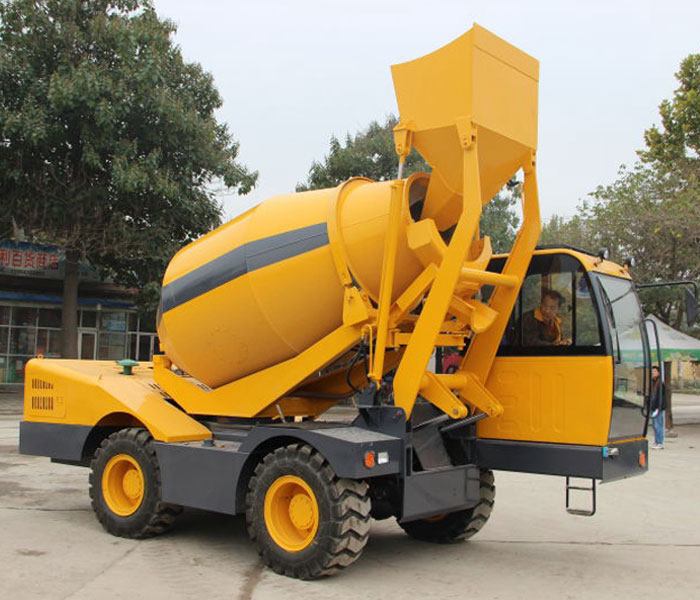

Self loading concrete mixers have compact structure and it mainly consists of six parts:
1. Under the mixer is chassis,which is to support the mixer; its powerful engine offers power and ensures that the machine can function on and on;
2. Mixing drum is driven by the powerful engine and achieves rapid mixing, mixing quality is high, in addition self loader mixer, SICOMA twin shaft concrete mixer also has advantages of large output and good uniformity;
3. Hydraulic system is the core of discharging materials, this kind of discharging method has been put into wide use, and its discharging speed is pretty fast,which can effectively save the construction cost;
4. Independent water supply system can offer the water continuously and ensure the normal function of the machine;
5. The space of the operating room is small, but can achieve perfect working process. It has attractive appearance and compact structure, all the compositions co-operate fully with each other and run efficiently.
Advantages And Classifications of self loading concrete mixers
Self loading concrete mixer is a new type mobile concrete mixer. Compared to the other general concrete mixers, the biggest advantage is that it can achieve materials loading, weighing, discharging and conveying on its own, which greatly save the production cost. In addition, it is more suitable for small scale engineering and short period limit of project, such as road construction, bridge construction, water conservancy project, electric power engineering and so on. And according to the mixing principle, it belongs to self falling type concrete mixer. Mixing blades radially allocated in the inner wall of the mixing cylinder, when the machine begins to work, the materials will be lifted to a certain height and fall freely by its own gravity and by this way, the concrete will achieve a good mixing effect.


Technical Parameters

Equipment Model SR1500 SR2600 SR3500 SR4000
Drum geometrical capacity 2500L 3900L 5400L 6000L
Discharge capacity 1500L 2600L 3500L 4000L
Engine model Yunnei Yunnei Yuchai Yuchai
Rated power 55kw 76kw 92kw 95kw
Transmission 4 wheels drive,2 steering 4 wheels drive,2 steering 4 wheels drive,2 steering 4 wheels drive,2 steering
Fuel tank 95L 105L 155L 175L
Total hydraulic system capacity 95 liters 105 liters 115 liters 175 liters
Oil tank 16 liters 16 liters 16 liters 16 liters
Reducer HJ80-43 HJ80-43 HJ80-43 KY07-5-J
Hydraulic pump FC50/40 CBGQ 2050/2032 CBGQ 2040/2080 Interpump
Hydraulic motor BM5-160 BM5-160 BM5-160 BM5-160
Water tank 380L 650L 850L 950L
Water supply Time relay Time relay Time relay Time relay
Overall dimensions(L*W*H) 6100*2300*2490 7400*2400*3200 7100*2350*3560 7400*2500*3400
Wheelbase (mm) 2600 2800 2900 2480
Curb Weight (kg) 4800 6500 7500 7500
Drive Form Torque converter Torque converter Torque converter Torque converter
Drum rotate / 270º 270º 270º
Drum mixing speed (r/min) 13 13 13-20 17
Chassis Max.Speed (kn/h) 30 30º 30 35
Maximum grade 30º 30 30º 45º
Maximum turning radius (mm) 5270 5300 5300 4800
Minimum ground clearance (mm) 280 380 380 330
