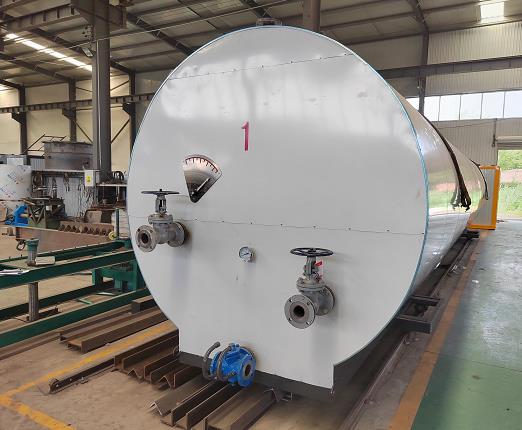

Bitumen Storage Tank

Bitumen Storage Tank

Model:bitumen tank

Production Capacity:30T-40T

Customized Container Size
Heat Transfer Oil
Bitumen Storage Tank
Asphalt Transfer Heat

Our oil heating bitumen tank consists of storage tank (including insulating layer), oil burner, built-in combustion chamber, flues, oil heating conducting coiler, mixer, bitumen pump, oil circulating pump, expansion slot, bitumen temperature display,


The heat transfer oil asphalt tank uses organic heat-carrying agent (heat transfer oil) as heat transfer medium, a coal-fired, gas-fired or oil-fired furnace as heat source, and utilizes forced circulation in the heat transfer oil pump to heat the asphalt to the service temperature.

The heat transfer oil tank is low-pressure, high-temperature, safe and sanitary. It adopts the technology of“device partially removing the asphalt” and can quickly remove the high-temperature asphalt from large-scale asphalt tanks without heating the asphalt tank as a whole.

Technical Parameters

Product Model


Capacity (m³)

30T/40T can load in 40HQ Container or customized according to customer requirements.

Boundary Dimension Diameter (m)

Diameter 2.2m

Heating Method

Burner direct heating or Thermal oil furnance

Flow of the Matching Asphalt Pump m³/h


Thermal Insulation Property


Please enter a valid email address.


    Q What is the Bitumen Storage Tank capacity?

    2022-09-28 17:20
    A 30-ton and 40-ton asphalt tanks can be loaded into 40HQ, and larger production needs to be customized in advance.

    Q What is the internal structure of the asphalt tank of the asphalt spreader heated by thermal oil?

    2020-06-11 17:25
    A Hi,Mineral thermal oil is up to 300 ℃. Synthetic thermal oil is up to 345 ℃.

    Q do you have vertical type bitumen tank?

    2020-04-27 16:58
    A Yes, we have vertical bitumen tank, we can customized for you according to your needs, later our sales manager will contact you.

    Q How to clean the bitumen heating tank?

    2020-03-24 13:22
    A The bitumen is softened and flowed out at a temperature of about 150 degrees, and the remaining part on the wall can be cleaned with kerosene, gasoline, and stupid chemical reagents. When cleaning bitumen tank, diesel is generally used. If it is thick, it can be cleaned by physical methods first, and then washed with diesel.

    Q i am interested in bitumen heating tank, send me details please.

    2020-03-18 10:53
    A 1. Fuel heating, diesel burner is imported from Italy Black & Decker. 2. District heating, suitable for heating a small amount of bitumen. 3. Adopt unique "pipeline technology", large heat exchange area, improve heating efficiency by 30%. 4. Reduce customer equipment investment, complete functions, suitable for maintenance engineering. 5. Convenient operation, heating, internal circulation, dehydration, easy operation by one person. 6. Integral structure, convenient transportation, installation and transfer;
Bitumen Storage Tank
