Bitumen Pump
Model:
Production Capacity:

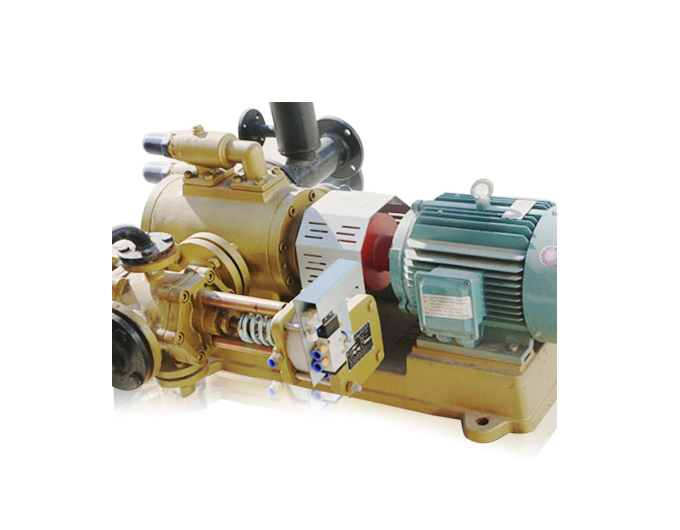

Three-Screw Pump of asphalt mixing plant is a positive displacement pump
Description
Three-Screw Pump of asphalt mixing plant is a positive displacement pump,and has the remarkable advantages such as simple structure,small volume,being allowed to rotate at high speed,stability and high efficiency,etc.
Three-Screw pump of asphalt mixing plant is only applicable to conveying lubricating fluids not containing solid particles at normal temperature.It may be used as a common delivery pump,and a pressure supply pump in hydraulic drive device.

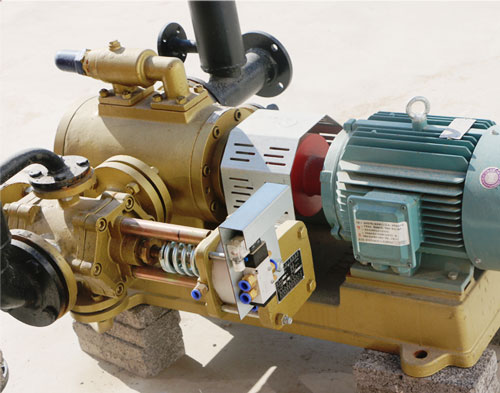

asphalt-mix-plant-pump.
The 3QGB series heat-preservation high-viscosity three-screw pumps developed by the company after many years of research optimize the cooperation between screw and pump block,and between driving screw and driven screw based on three-screw pump,in order to realize the delivery on high-temperature and high-viscosity media.
The 3QGB series heat-preservation high-viscosity three-screw pumps are mainly used to convey high-viscosity lubricating fluids.They are usually used as the delivery pumps of asphalt,heavy fuel oil,heavy gear oil and heavy diesel fuel.Inside the pumps,heat preservation chamber and channel are set us,gas or liquid could be used as heat carrier,and their maximum working temperature is equal to or lower than 350°C.High viscosity reduction,and the conveying viscosity is generally 3.0~760mm2.
Technical Parameters
|
Pump size |
Flowrate |
MPa Pressure Mpa |
Rotate speed r/min |
Power KW |
NPSHR m |
Motor size |
||
|
m³/h |
1/min |
Shaft power |
Motor power |
|||||
|
60X2-43 |
8.6 |
143.4 |
0.6 |
950 |
2.06 |
3 |
5 |
132S6B3 |
|
8.27 |
137.9 |
1 |
3.18 |
4 |
132M1-6-B3 |
|||
|
13.1 |
218.9 |
0.6 |
1450 |
3.15 |
4 |
112M-4-B3 |
||
|
12.6 |
210.5 |
1 |
4.86 |
7.5 |
132M-4-B3 |
|||
|
60x2-46 |
9.89 |
164.8 |
0.6 |
950 |
2.33 |
3 |
5 |
132S-6-B3 |
|
9.73 |
162.2 |
0.8 |
2.91 |
4 |
132M1-6B3 |
|||
|
9.56 |
159.4 |
1 |
3.61 |
5.5 |
132M2-6B3 |
|||
|
15.1 |
251.6 |
0.6 |
1450 |
3.56 |
5.5 |
132S-4-B3 |
||
|
14.6 |
243.3 |
1 |
5.51 |
7 5 |
132M-4-B3 |
|||
