Trailer Mobile Concrete Batching Plant

Trailer Mobile Concrete Batching Plant


Production Capacity:Qingdao

Sinoroader is a manufacturer of concrete batching plant, trailer concrete plant, mobile batch plant, modular concrete batch plant in China.

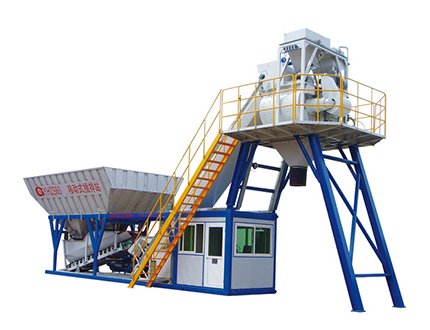

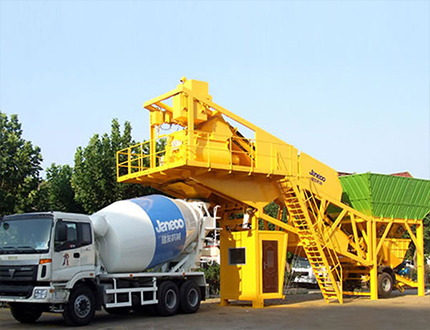

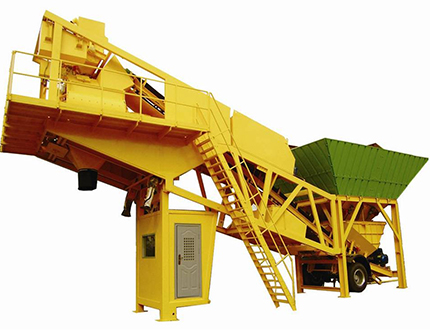

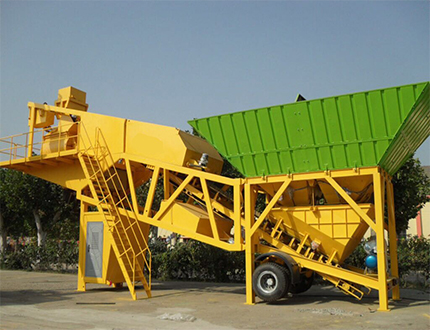

Mobile concrete batching plant has been ideal choice for mobile construction project of long construction line, and needs to change the construction site frequently, such as, highway, railway, port, water-power engineering. And mobile concrete batch plant for sale is a special concrete production equipment combines material storage system, material weighing system, material conveying system, material weighing system, discharging system and full automatic control system into a drag unit. We Sinoroader is professional mobile concrete batching plant manufacturer, mobile batching plants produced by us can achieve stable performance. For working process, they are the same as the stationary concrete batching plant, operating method and maintenance, meanwhile, it is with features of easy transportation, convenient assembly and disassembly as well as simple storage management. What’s more, mobile concrete plant is widely used to mix no-slump concrete and fluidity concrete. The whole equipment has less land occupation, and during the usual working process, the maintenance only needs few people and short time, which greatly save the construction cost. Also, mobile cement plant is suitable for new rural construction. Its high mechanization degree brings a lot of convenience to people.


Mobile Concrete Batching Plant YHZS Series Twin Shaft Concrete Mixer
We mainly have types of YHZS-25/35/50/75 for your selection. And they are equipped with corresponding YHZS series twin shaft concrete mixers: JS500/750/1000/1500. Some portable concrete mixer batching plants are equipped with double spiral belt concrete mixer. Compared to YHZS series concrete mixer, this kind of concrete mixers reduce the mixing time to half, and the evenness is increased by 15%.
Advantages of YHZS-25-75 Mobile Concrete Batching Plant

Mobile concrete batch plants have many advantages as fellows.
1. High productivity and low energy consumption.
We adopt YHZS series compulsory concrete mixer as the mixing console, double helix mixing blades and advanced shaft-end seal technology, which greatly improve the performance of the whole mobile type concrete batching plant;
2. Stable performance and long service life.
We spare no effort to buy imported brand parts and learn advanced Germany technology, ensure the quality of the machine;
3. Easy movement and convenient maintenance.
Concrete mobile batch plants are in a complete drag unit, so it can be transported easily. In addition, it has compact structure and less land occupation. At the both sides of the belt conveyor, there is maintenance tunnel for the convenience of check and maintenance.

Technical Parameters

Model Belt Type
Theoretical Productivity (m³/h) 25 35 50
Mixer Model (Mixer Output L) JS500 JS750 JS1000
Mixer Power (kW) 18.5 30 2×18.5
Mixing Cycle Period (s) 67 72 72
Rated Input Volume (Model of Batching Machine L) 800 1200 1600
Max.Aggregate Size (mm) Φ60 Φ60 Φ60
Standard Aggregate Bin Capacity (m³) 2×3 2×5 3×5
Category of Aggregate 2002/3/4
Powder Storage Silo (ton) (Optional) 1×50 2×50 1×100
Max. Discharging Height (m) 3.8 3.8 4.1
Weighing Range & Accuracy of Aggregate (kg) (300~1500±2% (300~1500±2% (300~3000±2%
Weighing Range & Accuracy of Cement (kg) (100~300±1% (100~300±1% (250~900±1%
Weighing Range & Accuracy of Water (kg) (60~150±1% (60~150±1% (80~300±1%
Weighing Range & Accuracy of Additive (kg) / (8~20±1% (8~20±1%
Overall Weight (ton) ≈15 ≈22 ≈26
Installation Power (kW) ≈61 ≈73 ≈92
Power Supply 380V/220V/415/440V, 50/60HZ, 3Phase

Please enter a valid email address.


    Q What is the difference between ready mix concrete and cement?

    2020-03-05 13:12
    A Although the terms cement and concrete often are used interchangeably, cement is actually an ingredient of concrete. Concrete is basically a mixture of aggregates and paste. The aggregates are sand and gravel or crushed stone; the paste is water and port land cement. Concrete gets stronger as it gets older.

    Q How many types of concrete mixing plant do you have? What about the output capacity?

    2019-10-31 15:47
    A Our asphalt mixing plant can meet the output capacity from 25t/h to 360t/h.

    Q Will you incharge of installation and commissioning?

    2019-09-17 14:54
    A We will send an engineers team to guiding erection in the buyer's working site for installation and commissioning.
