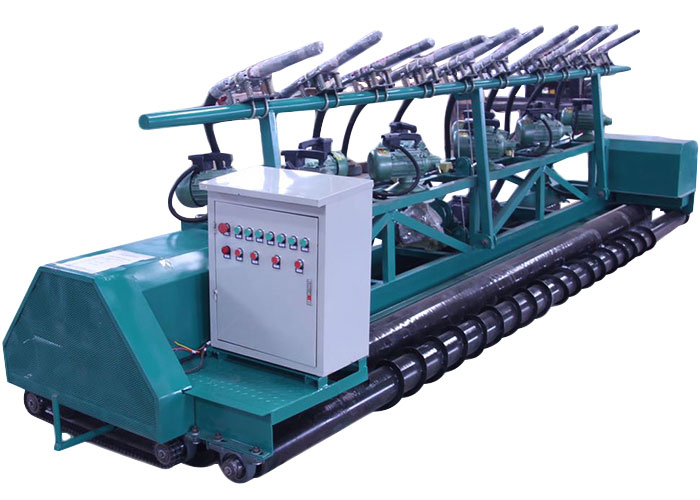

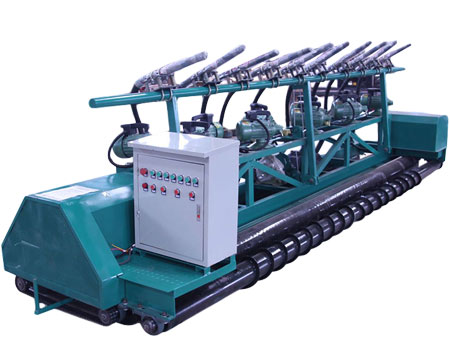

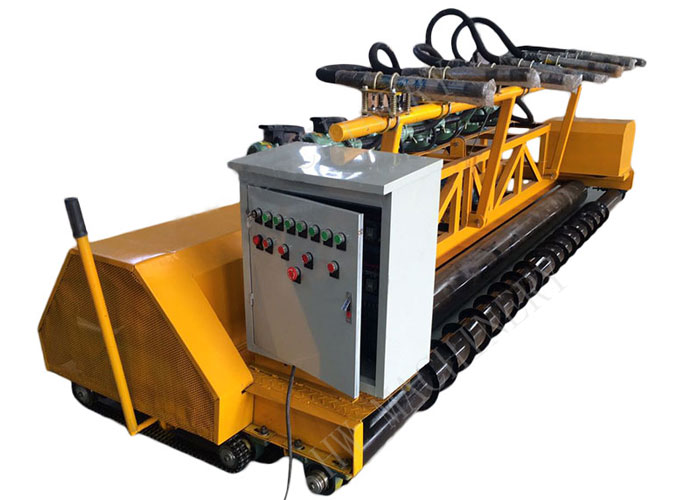

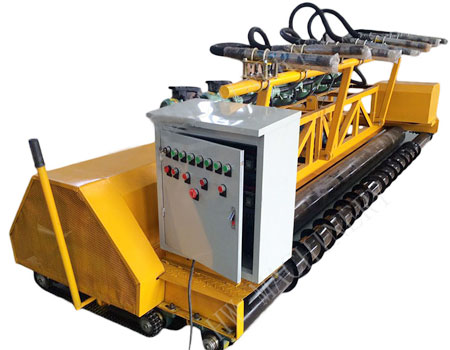

Concrete Vibrator Paver

Concrete Vibrator Paver

Model:concrete vibrator paver

Production Capacity:

Road Construction vibrator Roller Cement Concrete Road Paver.Construction Vibration Machine Price Concrete Vibrator Paver.


1. Features:
a.Combined the concrete roller paver with concrete row, has features of both of them.
b.Designed with self-driving design, can be operated by one worker with high working.
c.Concrete vibrators removes the water and air in the concrete to reinforce the concrete, and two roller tubes and one auger meet tight paving specification.
d.Plastic coated paint finish for longer life, professional looks and easy clean up.
e.Ideal for handling low slump concrete.
f.Produces a floor with excellent surface aggregate consolidation, resulting in a harder, longer wearing surface finish.
g.Instant forward/reverse screeding action. Strikes off concrete more quickly than conventional methods.
The following steps are intended as a basic guide to machine start-up and operation. Following these procedures will help preserve and maintain the safety and life of the operator and this machine.
1.Check that all parts and screws are fastened.
2.Check the mains wiring and connections to the starter switches and power motors.
3.Before connecting the supply voltage, make sure that both the starter levers (inside the control box) are in the STOP position.
4.Check to make sure that the supply voltage is a 3 phase voltage ranging between 380-410 volts AC.
5.Make sure that no Power Cable touches any of the rollers when the machine is in motion.
6.Check that the power supply earthing is properly connected.
7.Check that all moving parts are properly oiled and greased before operation.

8.Clean all road blocks around the machine.


The machine is driven by two electrical 3 phase motors which power the rotation to the rollers by a reduction gear box. Please be noted that all buttons have English instruction.
Vibrators lifting and falling:
1.Turn on the key switch, and then turn on the vibrators falling button.
2.After all vibrators insert concrete, turn off the vibrators stop button.
3.Press vibrators start button, and then turn on the switch on each vibrator motor.
4.Beat vibrators so that they could be on work.

5.Turn off all switches of each concrete vibrators M


The FASTA CONCRETE PAVER provides all the benefits of labour saving, high productivity and enhanced floor flatness/levelness qualities. In order to maximize these benefits, care must be taken to ensure a successful application. In adequate substrate and form support can lead to form failure causing unnecessary job delays and expenses while contributing to poor floor flatness and floor levelness ratings. The intent of these specifications is to establish minimum guidelines to help the contractor choose the most economical and effective form work/support system to fit any job site needs.

It is recommended that at least a day prior to the concrete pour, a dry run be accomplished to test the load capacity of the forms and substrate. Proper job planning is essential to be successful application.

The weighs approximately 1000-2000 kgs. Any paver support (forms, rails, rail supports and substrate) must withstand point loadat a 2:1 safety factor.


Subgrade must be sound enough to support slab edge forms and bracing as well as the load imposed by the paver and its supports. Potential deflection, as in the case with metal and plywood decks, should be considered when determining brace and support spacing. Soil subgrades must be well compacted and must be able to support bearing pressures greater than or equal to those imposed by the paver support and the slab forming. For proper bearing supports, shims should be used to adequately distribute loads where grade is not level and is soft. Use standard AC concrete form pressures when calculating lateral loads on slab edge forms.


Screed rails and supports, independent of slab edge forming are a preferred method. Due to strength, deflection and traction considerations, 3.5x 3.5x 875(3/16) wall structural steel tubing with adjustable supports spaced will be the perfect choice. Standard deflection with 3/16wall thickness for the above configuration is 1/6in 4 ft. Refer a standard material charts for other configurations.


Paving forms with 900 lip-edges at bottom with stake pockets is preferred. If soft or unlevelled subgrade is encountered, a 2xbearing pad and /or shims should be used under the steel forms for additional bearing support. Depending on slab thickness and subgrade, forms may require diagonal bracing.

Please enter a valid email address.


    Q How thick should concrete pavers be?

    2020-03-14 09:28
    A Thickness of concrete pavers varies according to the application: Pedestrian areas, driveways, and areas subject to limited vehicular use are paved with units 2 3/8" thick. Streets and industrial pavements should be paved with units 3 1/8" thick.
