Features

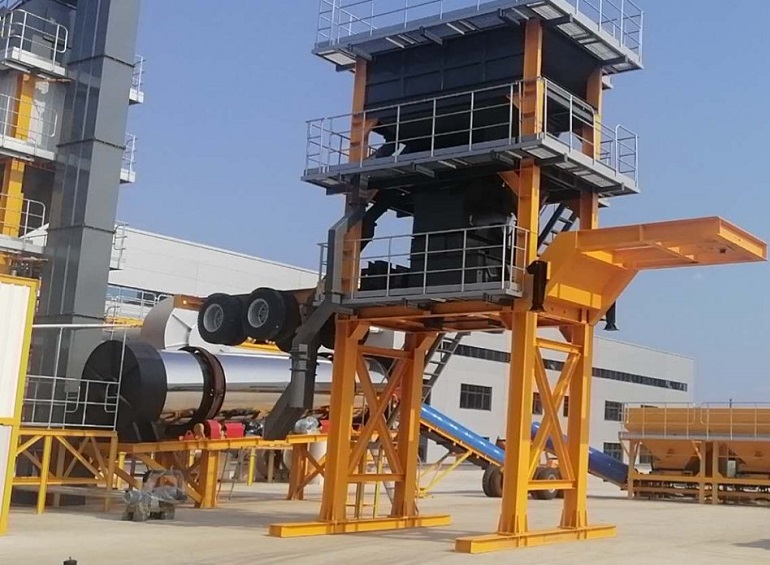

YLB Series mobile asphalt mixing plant is developed, designed, manufactured and put on sale by Sinoroader Road Construction Machinery. It inherits the advantages of LB series asphalt batch mixing plant, and adds new elements including: containerized size, modular design and trailer and mobile chassis which make it possible for container transportation, fast mobilization and relocation.

YLB Asphalt Plant is designed for small and medium-sized pavement project which need frequent relocation. Complete plant can be dismantled and reinstalled in 5 days (not including the transportation period).

Sinoroader | Drying System
1. Adopts four sets of famous powerful direct-connected gear motors to drive the drying drum;
2. Optimized blades make the drying process more balance with higher heat utilization rate;
3. Drying drum is covered by thermal insulation material and stainless steel skin to avoid heat loss;
4. Well calculated and carefully heat treated drying drum, world class bearings have long service life and stable performance.
asphalt-mixing-plant-pump

Sinoroader | Dust Collecting System
1. Double dust collecting system, European emission standards;
2. Pulsating dust removal method, energy saving and efficient;
3. Durable key components;
4. Safety protection, intelligent inspection.
asphalt-plant-Baghouse
Sinoroader | Vibrating Screen
1. Sturdy and durable, high intensity and remarkable screening effect;
2. Screen mesh easy to maintain and replace, time saving;
3. Frequency and amplitude perfectly matched, over 95% grading precision, competent to any severe working situation, high temperature resistance and excellent productivity;
4. Best design to guarantee the best screening result.
a. Adopts self-synchronizing driving technology, maintenance-free and environmental;
b. Patent enhanced drivable bridge structure design, tough and protective for screening components;
c. Famous vibrating motor.

Vibrating-Screen-asphalt-mixer-plant

Sinoroader | Mixing System
1. Simulating optimization of material mixing movement speed;
2. Ensures each batch is totally and equally mixed with 25% mixing efficiency enhancement and 20% energy consumption reduction;
3. High productivity double-shaft mixer.

asphalt-mixer
Sinoroader | Bitumen Pump
Three-Screw Pump of asphalt mixing plant is a positive displacement pump,and has the remarkable advantages such as simple structure,small volume,being allowed to rotate at high speed,stability and high efficiency,etc.
By using the principle of screw meshing and relying on the mutual meshing of rotating screws in pump block,the three-screw pump of asphalt mixing plant sucks the medium conveyed and seals it in the meshing cavity,then pushes it to the discharge port along the axial direction of screws at uniform speed,and forms stable pressure at the discharge port.

Three-Screw pump of asphalt mixing plant is only applicable to conveying lubricating fluids not containing solid particles at normal temperature.It may be used as a common delivery pump,and a pressure supply pump in hydraulic drive device.
asphalt-mix-plant-pump

The 3QGB series heat-preservation high-viscosity three-screw pumps developed by the company after many years of research optimize the cooperation between screw and pump block,and between driving screw and driven screw based on three-screw pump,in order to realize the delivery on high-temperature and high-viscosity media.
The 3QGB series heat-preservation high-viscosity three-screw pumps are mainly used to convey high-viscosity lubricating fluids.They are usually used as the delivery pumps of asphalt,heavy fuel oil,heavy gear oil and heavy diesel fuel.Inside the pumps,heat preservation chamber and channel are set us,gas or liquid could be used as heat carrier,and their maximum working temperature is equal to or lower than 350°C.High viscosity reduction,and the conveying viscosity is generally 3.0~760mm2.

Specification

Model YLB1000 YLB1500 YLB2000
Capacity 80 t/h 120 t/h 160 t/h
Mixer Capacity 1000 kg/batch 1500 kg/batch 2000 kg/batch
Fuel Consumption Diesel consumption: 5.5-7 kg/ton
Weighing Precision Hot aggregate: ±0.5%; bitumen: ±0.3%; filler: ±0.2%
Hot Asphalt Temperature 130-165 (adjustable)
Air Emissions ≤ 20 mg/Nm³
Working Noise ≤ 70 db(A)
Operation Full Auto/Manual Operation
Installation Power 241 kW 330 kW 412 kW
Voltage 220V/380V-50Hz (adjustable)
Plant Covering Area Length 40 m 40 m 42 m
Width 28 m 32 m 32 m
Height 15 m 16 m 16 m
Documents Lay-Out/ Electric Circuit Diagram; Chinese-English Operation Manual; Qualification Certificate.

HAVE QUESTIONS?
PLEASE LEAVE YOUR MESSAGE
Please enter a valid email address.
*
*
*

FAQ

    Q What is asphalt mixing plant?

    2020-03-20 14:35
    A Good day,the asphalt plants or asphalt mixing plant is one plant that is used for mixing the dry warm aggregate, padding and Asphalt for homogeneous mixture at the required temperature. And it is widely used to the construction of highway, city road and parking lot. Any questions,please feel free contact us again.Thank you.

    Q How many days for installation one set asphalt plant?

    2020-02-19 12:09
    A Around 20-30 days, according to local situation.

    Q How to choose working site of asphalt Mixing plant

    2020-02-12 13:58
    A In the asphalt mixing plant sitting process, should highlight the main factors affecting site selection, have little effect on the factors to be negligible. Sitting of asphalt mixing plant has the following main factors: 1. Asphalt mixing plant and paving the scene in the distance. 2. Asphalt mixing plant and materials in the distance. 3. Transport conditions. If the situation is not clear when the road transport, shipping time will be spent too long asphalt temperature during transport, the greater the loss. 4. Electric power supply. Determines the mixing station power supply is operating correctly. 5. The available land area size. Because of the raw materials to be stacked with a certain space, the normal operation of vehicles need enough space, all asphalt mixing plant requires a large enough floor space to meet these two requirements. 6. Sites of natural conditions, station should be selected environmental dry place. 7. Environmental issues, the main consideration of asphalt mixing plant away from residential areas or densely populated areas, to avoid causing air and noise pollution.

    Q What the price of an asphalt plant?

    2020-02-07 12:04
    A Before Telling You How Much Does An Asphalt Plant Cost, We Need To Confirm Your Detailed Requirements. It depends on the type (batch mix, drum mix, mobile, hot recycling plant, environmentally friendly, etc.), capacity (60t/h, 100t/h, 240t/h, 400t/h, etc.), configuration you choose. There are many more factors influencing the price, but the core of all of them is your requirement So as long as you clearly state your specific demands, we can give you a satisfactory answer about how much an asphalt plant costs.

    Q What kind of dust collection system is used in the asphalt mixing plant?

    2020-01-17 09:26
    A We have two configurations of water dust collection and baghouse dust collection.
